BAND BLADE MECHANIC GRINDING UNIT - RF 130

  • Band blade mechanic grinding unit - rf 130
BAND BLADE MECHANIC GRINDING UNIT - RF 130

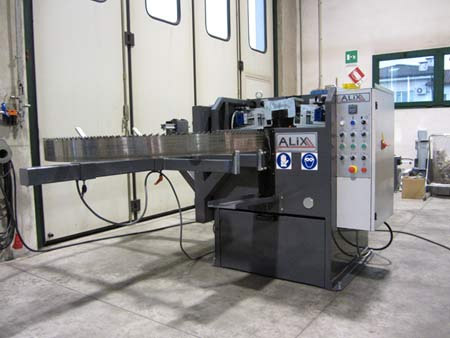

The Alix RF 130 series grinding unit is a machine designed to grind the sides of stellite® coated log band saw blades teeth.
All movements are electro-pneumatically controlled and dimensioned in order to obtain a precise and smooth shifting. The overall structure of the machine, which is made entirely of electrically welded steel, is compact and very strong to ensure high-precision grinding. The vice closure is double acting: strong grip during tooth grinding, minimum grip during blade feed. The downward movement of the grinding wheel heads is also split into two distinct phases: fast during the approach stage, slow during the tooth grinding stage.
The on-board switchboard features an ergonomically positioned operator panel on which are fitted the easily identified selectors and teeth counters.

MAIN TECHNICAL DATA UM RF 130 GRINDING UNIT
Blade width [mm] min 50 max 310
Blade length
(depending on the type of support)
[mm] min 4500 max 13000
Tooth pitch [mm] min 20 max 80
Heads angle (both during cutting and direction of feed) [degrees]
Blade thickness [mm] min 0.8 max 2.1
Grinding wheel diameter [mm] 80
Grinding wheel motor power [Kw] 0.75
working speed [teeth/min] 8
Max installed power [Kw] 2,5
Approximate machine weight [daN] 980
Coolant tank capacity [l] 80
AVAILABLE ACCESSORIES
  • Rear auxiliary feed
  • Internal halogen lights
  • Coolant level control
  • Power-driven blade stand
  • Option of 3 fixed positions for the grinding wheel heads corresponding to 3 different rakes (e.g. 3°-3.5°-4°)
  • Walk-on platform
