ELECTRONIC FEEDER WITH CLAMPS MOD. A.E.P.

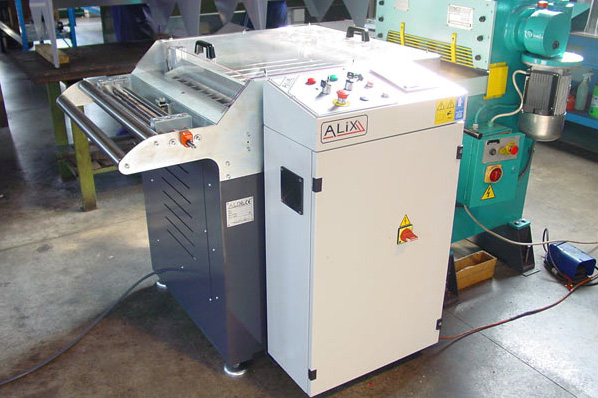

  • Electronic feeder with clamps mod. a.e.p.
ELECTRONIC FEEDER WITH CLAMPS MOD. A.E.P.


Feeders with rugged arc-welded structure and clamps driven by a brushless servo motor, which by means of a kinematic worm screw device, combines infeed speed and positioning accuracy. The clamps are locked by means of pneumatic or hydraulic actuators. The feeder stands on the ground on a raised base and is bracketed to the press surface, on which it can be easily adjusted in height.
A strip end device is fitted.
The control of the feeder is entirely electronic by means of an ergonomic and user-friendly display panel positioned in an independent console mobile electrical cabinet.
Different steps, even negative, can be set; option also to set the speed and the acceleration of the step and to store a number of different configurations in the machine memory bank, which can be pulled-up whenever a specific process has to be repeated.

Contact us to find out more about electronic feeder with clamps mod. a.e.p.!

MODEL UM AE150P AE600P AE950P
Max. strip width [mm] 100 600 900
Max. feed speed [m/min] 40 40 40
Maximum settable pitch [mm] 500 600 600
STANDARD CONFIGURATION OPTIONAL
  • Roller opening with pressure gauge
  • Manual vertical adjustment
  • Motor resolver sheet metal positioning
  • 2 limit switches on the cam shaft for interface with the press
  • Strip end photocell
  • Multifunction electronic cams with encoder which is controlled by the press cam shaft
  • Reader encoder with metric wheel
  • Single / double impulse counter
  • Safe tool device
