ELECTRONIC ROLLER FEEDER Mod A.E.

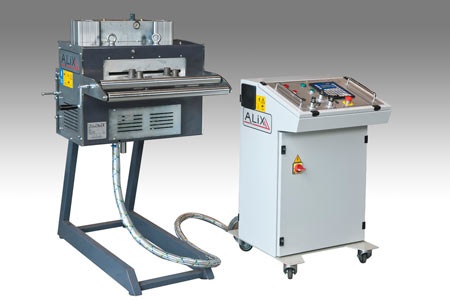

  • Electronic roller feeder mod a.e.
ELECTRONIC ROLLER FEEDER Mod A.E.


Electronic Roller Feeder manufacturers & suppliers



Rigid and compact arc-welded steel opposed roller feeder, powered by a brushless servomotor that, by means of a kinematic motion patented by ourselves, combines high feed speeds and accurate positioning.

Both rollers are motorised and synchronous, and pushed together by an easily adjustable electropneumatic low air consumption system that allows the sheet metal to be fed during the pilot centring phase in pitch moulding. The feeder is secured directly to the press bench and can be both vertically and horizontally adjusted, which is useful when tooling the die.

A strip end device is also fitted. The control of the feeder is entirely electronic by means of an ergonomic and user-friendly display panel positioned within an independent console mobile electrical cabinet.

The machine can perform pitches of different sizes even negative, and is equipped with a dimension and piece counter display, the speed as well as the acceleration of the pitch can also be set. Several different configurations can be stored, which can be called-up each time that a specific process needs to be performed.

Discover our electronic electronic roller feeder!

MODEL UM AE 620 AE 630 AE 840 AE 850
Max. strip width [m] 200 300 400 500
Max. strip thickness [mm] 3 3 2 2
Max. feed speed [m/1’] 120 120 90 90
Settable pitch [mm] 0,1 : 9999
STANDARD CONFIGURATION OPTIONAL
  • Pneumatic roller opening with pressure gauge
  • Manual LH/RH adjustment
  • Manual vertical adjustment
  • Motor resolver sheet metal positioning
  • 2 limit switches on the cam shaft for interface with the press
  • Strip end photocell
  • Quick coupling and release from the machine
  • 6 lateral strip-guides
  • 2 sheet metal transfer rollers
  • Pitch control device
  • Multifunction electronic cams with encoder which is controlled by the press cam shaft
  • Sheet metal reader encoder with metric wheel
  • Single / double impulse counter
  • Safe tool device
  • Integrated idle straightener
  • Roller lubricator with pressurised tank
Auxilizry equipment for presses
