HYDRAULIC UNCOILER Mod. S

  • Hydraulic uncoiler mod. s
HYDRAULIC UNCOILER Mod. S

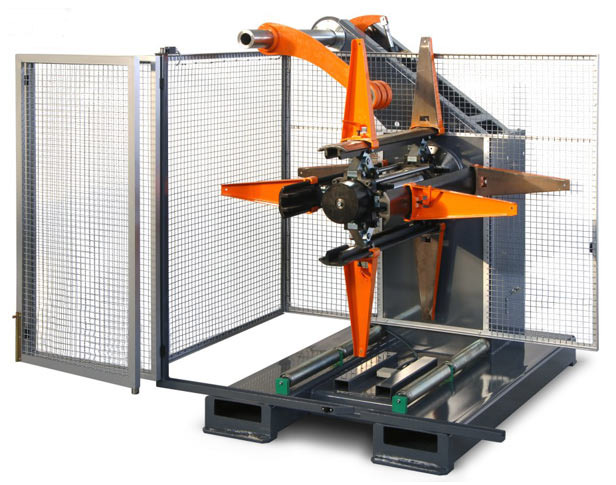

Uncoilers made with a rigid and extremely robust arc-welded steel structure that rests on the ground on cross members that can be stacked with forklift truck. The ground steel mandrel shaft supports four self-centring expanding spokes, including eight adjustable and removable strip guides to hold the coil. The mandrel can either be controlled idle or motorised depending on the need. The mandrel can be extended manually and hydraulically (with lever-operated pump) or electrically and hydraulically (with a motor pump).
To reduce the size as much as possible, both the mandrel motor and the control unit are inside the reel structure; the electrical control panel is also built-in to the machine. The strip loop is controlled by two contact rollers positioned at the base of the reel to reduce the length of the unwinding loop to a minimum.

MODEL UM S 15 S 20 S 30 S 50 S 60
Standard strip width [mm] 300
400
500
300
400
500
300
400
500
500
800
1000
500
800
1000
Max capacity [KN] 15 20 30 50 60
Mandrel max/min expansion [mm] 420/570 430/575 440/620 460/615 455/570
Strip max. diameter [mm] 1300 1300 1400 1400 1400
Rated rotation speed [rpm] 12 12 12 10 10
STANDARD CONFIGURATION OPTIONAL
  • Controlled idle mandrel
  • Manual hydraulic mandrel expansion with lever pump
  • Loop control with timed contact rollers
  • Motorised mandrel
  • Mandrel motor with inverter
  • Electric hydraulic expansion with motor pump
  • Pneumatic snubber roll with idle wheel
  • Hydraulic snubber roll with idle wheel
  • Hydraulic snubber roll with motorised wheel
  • Loop enabling with photocell
  • Perimeter barriers
  • Strip-guide discs for narrow strips
  • Loading cradle
  • Pedestal to allow external loop enabling
Auxilizry equipment for presses
