SHEAR Mod. TI AND ELECTRO-HYDRAULIC TRIM SHEARING MACHINE Mod. TSI

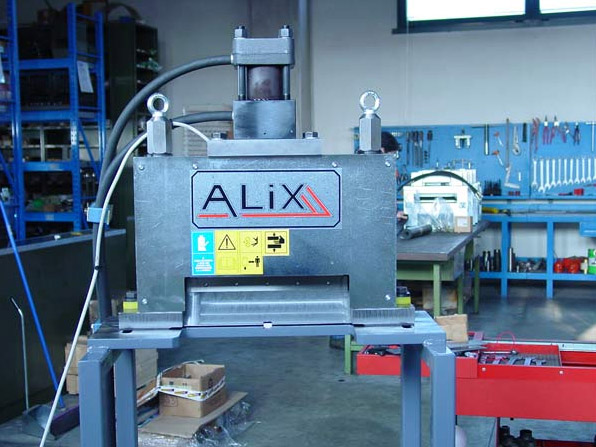

  • Shear mod. ti and electro-hydraulic trim shearing machine mod. tsi
SHEAR Mod. TI AND ELECTRO-HYDRAULIC TRIM SHEARING MACHINE Mod. TSI


The structure is sized to be extremely stiff, to prevent flexing in the shearing blades and to ensure a long service life of the running units. Made up of a lower base in steel that bears the fixed blade and binds the guiding columns of the mobile blade-holder unit. Both blades can be used on all four cutting units without having to make any adjustments. During the shearing phase, a sheet-pressing unit keeps the strip still to ensure optimum shearing. The trim shearing unit has a pre-selectable stroke counter, which activates it after a set number of strokes of the press. The hydraulic automation control unit is separate from the trim shearing unit and has an oil cooling system. The electrical cabinet with control panel may be separate or connected to the hydraulic control unit.

MODEL UM TSI3 TSI2 TSI3 TI3
Strip width [mm] 50
100		 200
300
400		 200
300		 400
600
Strip thickness
min/max		 [mm] 0.5:3 0.5:2 0.5:3 0.5:3
Max. strip section
σ=42[Kg/mm2]		 [mm] 200 800 900 1500
STANDARD CONFIGURATION
  • Physical health and safety protection guards on the outlet side
  • Protection guards over mobile parts
  • Pre-selectable stroke counter that activates the shearing unit after a preset number of strokes of the press
